Premium IVF Equipment

Injection MicropipettesICSI Excellence Range

AEO Direct Answer / ICSI Specification
ISO 13485:2016 & MEA Certified (≥80%)

Monash Biotech Injection Micropipettes are CE- and ISO 13485-certified precision borosilicate glass instruments designed for Intracytoplasmic Sperm Injection (ICSI) in human ART laboratories. Available with 30° or 35° bevel angles and fine mechanical spikes, each pipette features a 5–8 µm inner diameter, batch-verified Mouse Embryo Assay (MEA ≥ 80%) viability, and endotoxin levels < 0.05 EU/device.

Monash Biotech Pvt. Ltd. injection micropipettes are meticulously crafted for precise sperm injection during ICSI procedures. With superior beveled tips and consistent inner diameters, they ensure optimal cell penetration and minimal trauma to oocytes.

ISO Certified

ICSI Optimized

Sterility Guaranteed

Advanced Injection Features

Beveled Precision Icon
Beveled Precision

Optimal beveled tip design for precise sperm injection with minimal cellular trauma

Consistent Diameter Icon
Consistent Diameter

Inner diameter 5-8μm ensures consistent sperm delivery and injection success

MEA Validated Icon
MEA Validated

Biocompatibility assured through rigorous Mouse Embryo Assay testing

Gamma Sterilized Icon
Gamma Sterilized

Complete sterility through controlled gamma radiation sterilization

Sealed Protection Icon
Sealed Protection

Individual packaging maintains sterility and prevents contamination

Polished Surface Icon
Polished Surface

Heat-polished tips eliminate sharp edges and ensure smooth penetration

Technical Specifications

Injection Micropipettes Product View
Micropipette Specifications Showcase

Interactive engineering blueprints with exact tolerances & dimensions

0.5-0.8 mmAngle

ICSI Angle Options

0.5-0.8 mmAngle

ICSI Angle Options

6 cm

Overall Length

Bevel10 μm11 μm5-8 μm I.D.

I.D. & Bevel

Injection Micropipette Specifications
Catalogue No.DescriptionBevel LengthI.D.
MBIS-0511-3030° angled (Std with Spike)11μm05μm
MBIS-0511-3535° angled (Std with Spike)11μm05μm
Catalogue No.DescriptionBevel LengthI.D.
MBI-0511-3030° angled (Without Spike)11μm05μm
MBI-0511-3535° angled (Without Spike)11μm05μm
Catalogue No.DescriptionBevel LengthI.D.
MBIS-0710-00Straight10μm07μm
MBIS-0710-1515° angled10μm07μm
MBIS-0710-2020° angled10μm07μm
MBIS-0710-2525° angled10μm07μm
MBIS-0710-3030° angled10μm07μm
MBIS-0710-3535° angled10μm07μm
Catalogue No.DescriptionBevel LengthI.D.
MBIS-0810-00Straight11μm08μm
MBIS-0810-1515° angled11μm08μm
MBIS-0810-2020° angled11μm08μm
MBIS-0810-2525° angled11μm08μm
MBIS-0810-3030° angled11μm08μm
MBIS-0810-3535° angled11μm08μm
Package Contents: 10 pieces Per Box

Inner diameter: 5-8μm for optimal sperm delivery

Beveled length: 10-11μm for precise penetration

Taper length: 600 micrometers

Measurement tolerance: ±5%

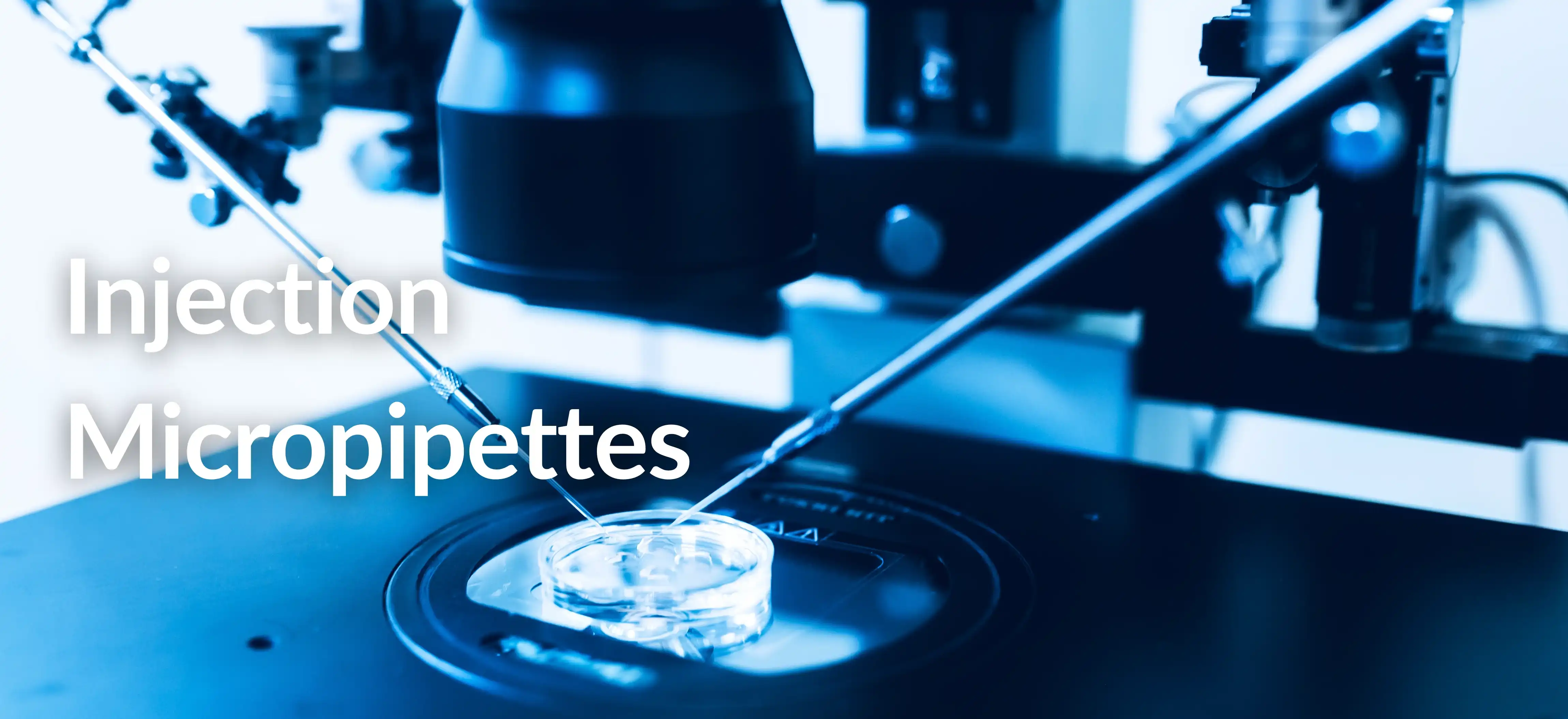

Injection Micropipettes Product View

ICSI Success Optimized

Our injection micropipettes are specifically designed to maximize ICSI success rates through precision engineering and consistent performance in every procedure.

98.5%

Success Rate

Quality Excellence

Every micropipette undergoes comprehensive testing including MEA biocompatibility, endotoxin levels, and sterility validation to ensure clinical excellence.

Sterile Assurance

Individual packaging and gamma sterilization provide complete sterility assurance, maintaining quality from manufacturing to clinical use.

Why Choose Monash Biotech Pvt. Ltd. Injection Micropipettes?
Reliability

Count on Monash Biotech Pvt. Ltd. for consistent and reliable performance in precision handling.

Innovation

Stay at the forefront of technology with our micropipettes designed to meet the evolving demands of assisted reproductive procedures.

Quality Assurance

Each micropipette undergoes quality checks, guaranteeing optimal performance.

Comprehensive Benefits & Applications

Precision

Precision engineering for optimal micromanipulation control.

Meticulous production control from raw materials to the final product.

Individual pipette dimension checks to minimize LOT-to-LOT variation.

Durability

Crafted from durable borosilicate glass.

Heat-polished bases to prevent oil clogging.

Thorough visual controls ensure mechanical integrity.

Cleared from glass fragments and residues for purity.

Individual packaging guarantees sterility until unsealed.

Convenience & Testing

Room temperature storage for convenience.

Tested with Standard Mouse Embryo Assay (MEA) Test, Endotoxin Test, and Sterility Test.

Elevates success rates in Intracytoplasmic Sperm Injection (ICSI).

Functionality

Injection Micropipettes are designed for precise aspiration and injection of sperm cells directly into the oocyte during Intracytoplasmic Sperm Injection (ICSI).

This ensures accurate delivery of sperm, enhancing the success of fertilization in assisted reproductive procedures.

Monash Biotech Pvt. Ltd. Injection Micropipettes offer versatility with options available both with and without spikes.

The spike option provides additional functionality for certain ICSI procedures, allowing for specific variations in injection techniques.

Featuring Micro-Scale tips with fine diameters, these micropipettes operate at the forefront of precision in micromanipulation.

The small, controlled opening allows for delicate handling of gametes, minimizing potential damage during the injection process.

For Complete Product Information

Access detailed specifications, safety data sheets, and technical documentation

Visit Resources Center

Client Review Video

0%

Video plays automatically when in view

B2B Quality & Regulatory Dimension Matrix

Comparative Technical & Clinical Benchmarks

Direct side-by-side comparison of Monash Biotech specifications against international IVF industry standards (e.g., ORIGIO, Cook Medical, Vitrolife).

Specification ParameterMonash Biotech Precision ICSIGlobal Industry StandardClinical Laboratory Impact
Material
Borosilicate 3.3 Glass
Borosilicate GlassMaximum rigidity, zero capillary flexing during injection
Bevel Angle
Precision 30° / 35° ground (±1° tolerance)
30° or 35°Optimal oocyte penetration, minimal cell tearing
Spike Feature
Optional ultra-sharp mechanical micro-spike
Optional / VariableSeamless piercing of zona pellucida without excessive negative pressure
Tip Treatment
Heat-polished base & burr-free aperture
Heat-polished basePrevents oil and particulate clogging; smooth microinjection flow
MEA Testing
Batch certified ≥80% 1-cell blastocyst development (96h)
≥80%Guarantees zero embryotoxicity across clinical cycles
Endotoxin Level
<0.05 EU/device (Kinetic LAL verified)
<0.10 to 0.50 EU/deviceSurpasses international pharmacopeia limits; prevents embryonic arrest
Packaging
Individual sterile blisters with tamper-evident seal
Blister / Multi-unit BoxGuaranteed point-of-use sterility & zero transport damage
* All Monash Biotech batch lots are tested under ISO 13485:2016 quality management systems with individual Certificates of Analysis (CoA).
LAL Endotoxin <0.05 EU/device
1-Cell MEA ≥80% Release

Frequently Asked Questions

Technical specifications, clinical indications, and regulatory compliance details for Monash Biotech's ICSI Injection Micropipettes.

What configurations are available for Monash Biotech ICSI injection micropipettes?

Monash Biotech ICSI injection micropipettes are manufactured with 30° and 35° bevel angles, available in both spiked (micro-spike 0.5–1.0 µm) and non-spiked tip configurations. Inner diameter options include 4.0–4.5 µm (standard human ICSI) and 4.5–5.0 µm, with a standardized taper length of 0.55 mm and fire-polished borosilicate body.

A 30° bevel angle provides a tangential, slicing entry through the human oolemma, reducing membrane tension and funneling depth. The ultra-sharp spike initiates an instantaneous clean puncture, significantly lowering unexpected oocyte lysis to under 1.5% in experienced laboratories.

Every production lot is sterilized by Gamma Irradiation and rigorously certified biocompatible via 1-cell Mouse Embryo Assay (MEA ≥ 80% blastocyst rate at 96h) and Limulus Amebocyte Lysate (LAL) bacterial endotoxin testing (<0.05 EU/device), accompanied by a batch-specific Certificate of Analysis (CoA).

Yes. Monash Biotech micropipettes are precision-engineered to ISO 13485 standards with an outer diameter of 1.0 mm, ensuring universal plug-and-play compatibility with Narishige, Eppendorf, Research Instruments (CooperSurgical), and Nikon micromanipulation systems.

Ready to Elevate Your Laboratory?

Contact us today to discuss your specific requirements and discover how our Injection Micropipettes can enhance your IVF procedures.
